High Temperature PEEK Printing

How we manufacture the perfect fit

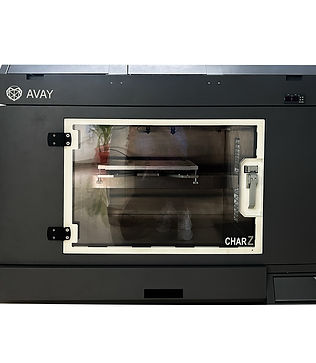

The Char-Z is our line of FDM Printers adapted to specialise in High-Temperature PEEK printing to manufacture orthopaedic implants. Our machine has an enclosed heated chamber to account for warping issues and other imprecisions common to PEEK printing use cases. Using customization via 3D printing we are capable of providing a good fit so that medical practitioners can focus less on the engineering and more on the patient.

Maxillofacial Implant

Maxillofacial PEEK Implant Sample

Spinal PEEK Implant

We acknowledge our project success thanks to a research grant by BIRAC, Department of Biotechnology, Govt. of India. We encourage interested parties to contact us for details on how we can collaborate to bring this solution ecosystem eventually to hospitals.

Spinal Vertebrae PEEK Implant

Printing Specifications

Motion Control

Build Volume

Print Resolution

Filament Diameter

Number of Extruders

Print Speed

Nozzle Diameter

X, Y, Z axis

300 X 300 X 300 mm

50 Microns (0.3 mm nozzle)
100 Microns (0.4 mm nozzle)

1.75mm

2

20-200

0.3, 0.4, 0.6, 0.8 and 1

Filament Compatibility

Engineering plastics

High-Temperature material

Ultra performance material

PLA, TPU, PC,ABS, PETG, ASA

PEl(ULTEM), PPSU, PA-CF

PEEK, PAEK, PEKK, CF-PEEK


Electrical Specifications

Input Power

Max Power

Output Power

Screen

Print method

100-230 V, 1.5 A

3000W

24 V , 30 A

4.3” full-color touch screen, multi-language

USB connectivity, Wi-Fi, SD

Software Specifications

Operating system

Multi Material Printing

Print file type

Simplify 3D license package

Win 10/11, Mac OS

STL, OBJ, AMF, 3MF

Mechanical Specifications

Cooling

Positioning precision

Platform

Extruder

Machine construction

Bed Leveling

Water Cooling System

X, Y axis 0.01mm, Z axis 0.0025mm

PEI coated spring steel removable base plate with Silicone heater under the platform

Direct drive Dyzen and E3D combination

Fully enclosed heated chamber with aluminium outer body

Automatic bed leveling (Mesh/Grid)

Size & Weight

Machine size

Gross weight

Packing size

Net weight

1100mm x 900mm x 750mm

80kg

1200mm x 1000mm x 850mm

90kg

Temperature

Nozzle maximum Temperature Maximum Chamber Temperature

Platform Max temperature

Operating Nozzle Temperature

Operating Chamber Temperature

Operating Platform Temperature

500°C

150°C

250°C

420°C

120°C

150°C
